Used 2018 Coachmen RV Catalina Legacy 343TBDS

Travel Trailer

Stock #14659

Longs-North Myrtle Beach, SC

SALE PENDING - We have more like this one. Give us a call 843-756-1072

1 of 38

+38

Sleeps 8
2 Slides
Bunkhouse

Walk-Thru Bath

36ft Long
7,413 lbs

See All Specs

Specifications

Sleeps	8	Slides	2
Length	35 ft 8 in	Ext Width	8 ft
Ext Height	11 ft 11 in	Hitch Weight	913 lbs
GVWR	9500 lbs	Dry Weight	7413 lbs
Cargo Capacity	2087 lbs	Fresh Water Capacity	46 gals
Grey Water Capacity	40 gals	Black Water Capacity	30 gals
Furnace BTU	30000 btu	Number Of Bunks	3
Available Beds	Queen	Refrigerator Type	Double Door
Cooktop Burners	3	Shower Size	34" x 34"
Number of Awnings	1	LP Tank Capacity	20
Water Heater Capacity	6 gal	Water Heater Type	DSI Gas/Electric
AC BTU	13500 btu	TV Info	LR 32" LED TV
Awning Info	18' Power	Axle Count	2
Number of LP Tanks	2	Shower Type	Radius
Electrical Service	30 amp	VIN	5ZT2CAZB5JT011391

Description

Two bedrooms, two entry doors, and two nice slides for added interior space are what you will find in this Coachmen Catalina Legacy bunkhouse travel trailer that is ready for your next adventure!

Step inside model 343TBDS using the door closest to the front, and notice a breakfast bar with two stools to your immediate left. There is a large sink around the corner, and a three burner range with overhead microwave that will make cooking while you camp super easy. There is also a refrigerator along this same curbside wall, and opposite you will find a pantry for dry and canned goods as well.

The slide out opposite the main entry door features a booth dinette and a sofa. You can opt. for a free standing dinette if you like, plus there is overhead cabinet space above the sofa for your things. Adjacent you will find an entertainment center with a fireplace below. The fireplace is a great feature when you camp in cooler weather, and it brings a warm ambiance to a relaxing evening indoors.

At the very front of this Catalina Legacy model you will find a bunkhouse that the kids are sure to love. It features a sliding door for privacy and includes a set of bunks along the curb side, and a second bunk above two 30" x 30" COA Cubes below along the outer most front wall. There is a wardrobe for clothing to your left when you enter along with a TV shelf including overhead storage for your things.

For mom and dad to sleep comfortable there is a rear bedroom beyond the kitchen area and through a walk-through bath. The bathroom features a 34" x 34" radius shower with glass door, and a vanity on the left. The toilet is on your right as you pass through the bath and features linen storage up above.

A sliding door leads into the master bedroom from inside the bathroom. There is also a second entry door from outside that leads into this rear bedroom as well. Here you will find a queen bed slide out with nightstands on both sides, plus overhead storage above, and a cabinet with TV top opposite just to the left of the door.

On the outside you will find an 18' awning that allows you to enjoy some protected space outdoors from the wind, sun, and rain. There is also outside storage in front where you can tuck away some of your outdoor gear when not in use. This model also makes available the option of adding a queen bed up front in place of the bunkhouse if you don't need as much sleeping space. The choice is totally up to you!

Features

Standard Features (2018)

Exterior

Cambered structural steel I-Beam frame (with full width out riggers)
3/8" Fully decked walk-on roof
One-piece seamless walkable roof
Radius entry steps
5/8" Tongue & groove plywood floor decking
R-7 fiberglass insulation in sidewalls, roof & floor
G-20 tinted windows
Rain gutters with extended molded downspouts
Platinum .024" Aluminum exterior skin with .030 skirt metal
Painted bumper w/drain hose carrier and end caps
Radius-cornered fiberglass entrance door
Roto-cast holding tanks
Flush mount baggage doors that are lockable and radius cornered
Polished aluminum fender skirts
Self-adjusting brakes
110V G.F.C.I. protected exterior receptacle
30-Amp electrical service w/deluxe 110v 45-Amp power converter
City water hook-up
Radial tires
Easy-Lube axles
20 lb. LP bottles with ABS cover and auto switch over
Stabilizer jacks (4)
TV antenna with RG-6 coax cabling and satellite prep
Marine grade speakers (2)
Frame mounts/prep for cargo/bike rack receiver tube

Interior

35K BTU auto-ignition furnace with wall thermostat
6 Gallon gas/electric DSI water heater
Gas/Electric double door refer w/ reversible insert
Large pot & pan drawer
Easy access dinette booth doors
Under-bed storage, bed lifts easily on 2 gas struts
2 Shirt closets with mirrors
Fireplace at the base of the entertainment center (243RBS, 293RLDS, 333BHTS CK, 343TBDS)
STANDARD Fireplace at the base of the entertainment center and in the bedroom (333RETS only)
Bluetooth stereo w/CD, DVD, MP3, SD, USB and AM/FM radio
Residential in-floor ducted heat
Cable/TV hook-up in front bedroom
81” Living room ceiling height
2 full-length night stands w/ recepts
Congoleum woodplank linoleum flooring
Grace Cherry stained wood cabinets
12V On demand water pump
Decorative glass in living room cabinets
Systems monitor panel
Jack knife convertible sofa with sofa pillows
Shower curtain with curved shower track
Radius glass shower enclosure (243RBS, 263RLS, 283RKS, 293RLDS, 313DBDS CK, 333RETS, 333BHTS CK, 343TBDS)
Hard valance window treatment with lambrequin
Large dinette tabletop with marine grade pedestal
Marine toilet with foot flush
Full size medicine cabinet w/ mirror
Bathroom power roof vent
Drop edge Thermofoil countertop
High rise residential faucet
Screwed cabinet construction with pocket bored solid lumber core stiles
Easy-View extra large picture window at dinette
Silverware drawer
Solid bedroom and bunk room doors
Radius corner interior walls (where applicable)
Pleated night shades in living room
ABS tub/shower surround
Full length ball-bearing kitchen drawer guides
Water heater by-pass winterization kit
Residential quilted bedspread
Comfort series mattress
Speakers in living room ceiling

For Your Safety

Smoke alarm
Fire extinguisher
Dead-bolt lock on entry door
LP/CO2 gas detector

Fire escape windows

Options

32” flat screen LED TV in bedroom (333RETS only)
Enclosed and heated underbelly
15K BTU ducted A/C
50 Amp service with second 13.5K A/C (293RLDS, 313DBDS CK, 323BHDS, 333RETS,343TBDS)
50 Amp service with second A/C prep (293RLDS, 313DBDS CK , 323BHDS, 333RETS, 343TBDS)
Free standing table w/ 4 chairs (N/A U-Dinette floorplans)
Tri-fold hide-a-bed sofa
Kitchen sink covers
Bar stools (Recommended 243RBS, 343TBDS)
Fireplace in living room (283RKS, 313DBDS CK, 323BHDS CK)
Pull-out camp kitchen (273BHS) (standard 293QBCK)
Front Queen Bed IPO Quad Bunks (343TBDS)
Two (2) 30 Lbs. LP tanks with ABS cover
Half bath IPO walk-in closet (313BHDS only)
Entertainment jack knife sofa IPO COA Cube futon
La-Z-Boy reclines IPO swivel rockers (263RLS, 283RKS, 293RLDS, 333RETS)

Free Legacy Edition Package

Power Tongue Jack
Remote Operated Power Awning With Led Light
Remote Operated Starlight System
Skylight Above Tub/ Shower
32” Flat Screen LED TV and Swing Arm Bracket
Bluetooth Stereo W/ CD,DVD, MP3, SD, USB and AM/FM Radio
Under Mount Dual Basin Deep Kitchen Sink
Stainless Steel Oven
Mosaic Tile Backsplash and Stainless Steel Lighted Vent Hood
Flush Mount 3 Burner Range With Bi-Fold Glass Range Top
LED Interior Lighting
Stainless Steel Digital Microwave
Rear Vision Camera Prep
Spare Tire And Cover
Exterior Utility Shower
Front Diamond Plate Rock Guard
Black Tank Flush
Exterior TV Mount With 110V Outlet
Sport Wheel Package (Silver E-Coat Sport Wheels with Chrome Hubs and Lugs)

See us for a complete list of features and available options.

All features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Outstanding!
From the initial visit to the delivery of my new 5th wheel the service was outstanding! John showed me around initially and Nathan spent several days and a lot of time explaining the different types of trailers and answered all my questions. Arisa in the office was very attentive to all the employees

Deborah from Myrtle Beach, SC

We are here to help, call us at
843-756-1072 or Contact Us

We are here to help!

843-756-1072
Contact Us
Contact Sales

Recreation USA is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @843-215-1800 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2018 Coachmen RV Catalina Legacy 343TBDS

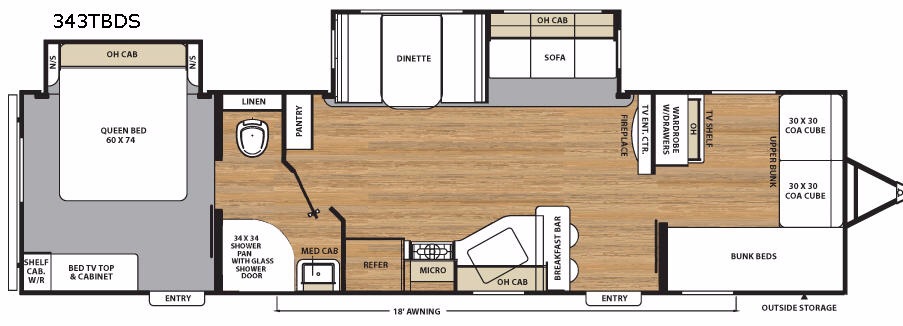

343TBDS Floorplan
